Accu Glide AG-2430 Graphic Vacuum Table 115v

by AWT

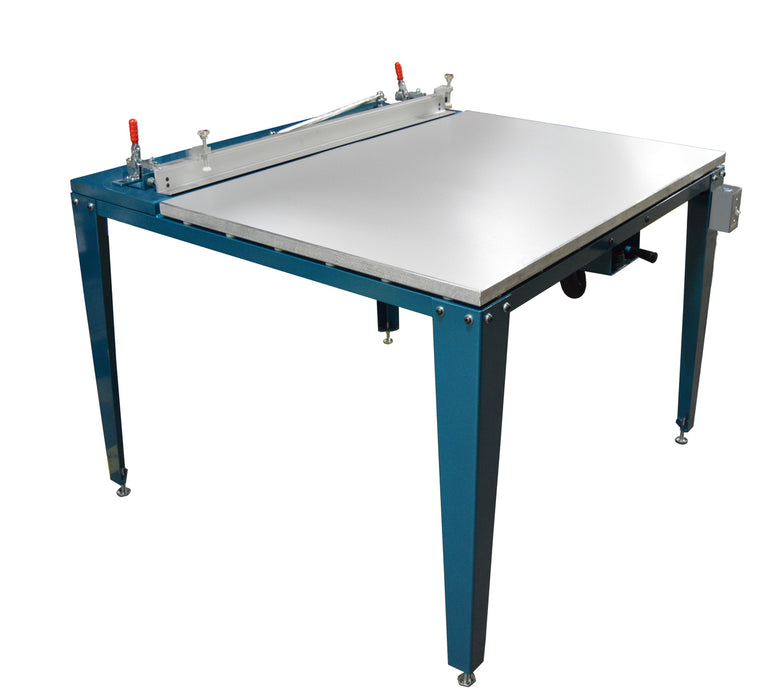

AG-2430 Vacuum Table

A.W.T.’s Small Format Accu-Glide™ Unit offers an inexpensive, yet high quality, solution to screen print short runs, proto-types and test runs. The aluminum Stay-Flat™ Vacuum Table pro­vides a flat, warp proof printing surface. The vacu­um holddown is powered by our maintenance-free quiet vacuum motor, the quietest in the industry. Vacuum on/off is easily controlled by the upfront hand lever system. The small-format Accu-Glide is manufactured using A.W.T.’s reliable products including the Big Gripper2™ screen frame clamping unit with X/Y micro registration control, heavy duty easy screen lift reversible sidekick and ergonomically shaped all-aluminum contoured squeegee holder. Adjustable legs allow the vacuum table height to be adjusted for operator comfort and ink control.


Standard Features
• Big Gripper™ Frame Clamping Unit with micro-registration
• Extra-thick aluminum, warp- and rust-resistant vacuum
table (provides a completely flat surface for fine quality
hand printing)

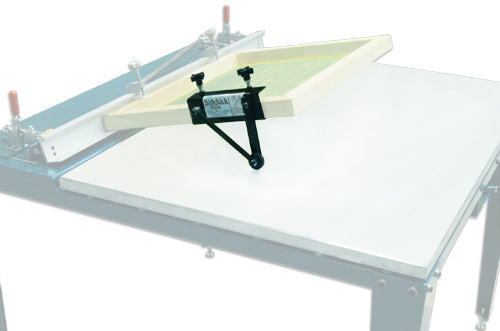

• Sidekick™ heavy-duty, reversible screen lift and
squeegee holder with Poly-Supreme™ Vulkollan
squeegee blade

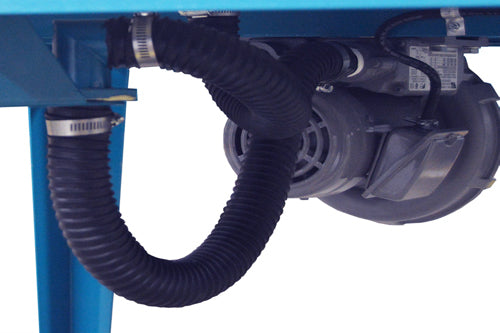

• Quiet, brushless maintenance-free Max-Air™ vacuum
motor
• Up-front vacuum control
• Adjustable legs

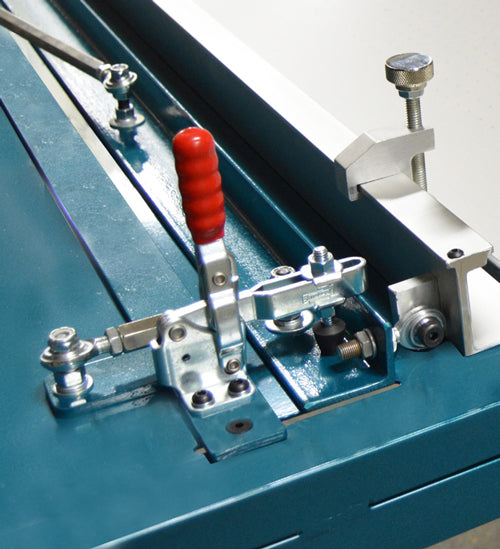

Ensure tight tolerances with the Micro Registration Lock-in feature. The Accu-Glide comes standard with a heavy-duty Max-Air Vacuum Motor. Each unit comes standard with the Big Gripper Screen Frame Clamping Unit and a heavy-duty, reversible Side Kick™.

Shipping Dimensions: AG-1525, 225 lbs (102.1 kg), 41" W x 43" L x 48" H, 104.14 x 109.22 x 121.92 cm
