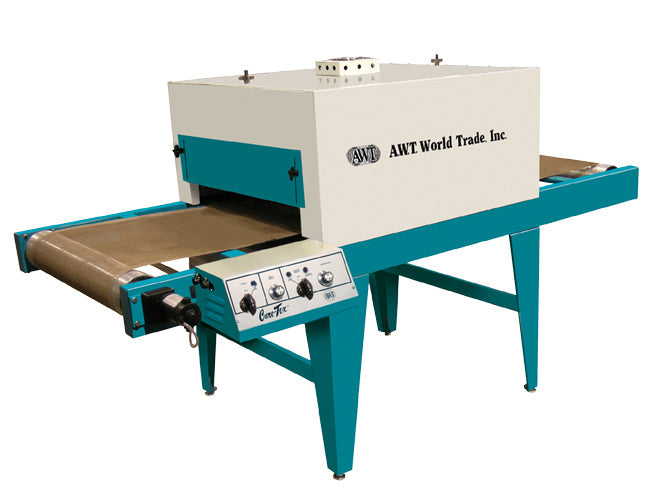

AWT CT-24-60 Cure-Tex Dryer 24" Belt 36” 208-240 V, 1 Ph, 60 Hz., 22 Amp

by AWT

AWT CT-24-60 Cure-Tex Dryer 24" Belt 36” 208-240 V, 1 Ph, 60 Hz., 22 Amp

CT-24-60
Cure-Tex Dryer, 24" Wide Belt, 36" Oven - 208-240 V, 1 Ph, 60 Hz (22 amp breaker)
$ 3795.00 List  ***Call for current pricing***
$ 195.00 Crating

The smallest forced air dyer that works. A consistent leader in the economy class of dryers, the Cure-Tex™ features the same high quality components as our larger infrared units at an entry level price. Engineered for top production speeds, the Cure-Tex can handle up to twelve dozen pieces per hour, or twenty dozen pieces per hour when equipped with the unit’s optional dual heat chamber. The dual heat chamber also works great for pieces in need of extended curing requirements. In both units, solid state temperature controls and heavy-duty chamber insulation combine for an efficient means of curing that keeps heat in and reduces energy consumption. Heat is delivered efficiently and uniformly to the pieces through a top down airflow pattern that guards against scorching.

A user-friendly control panel provides complete up-front operation with independent settings for temperature and belt speed. Heat panel height is easily adjusted, and a rugged Fiberlon™ belt withstands heat up to 500°F (260°C). Designed for easy access to all components and built to last, both units provide long life with minimal service. Options include a digital temperature control, extra conveyor lengths by the foot, and a
handy storage shelf.

Standard Features
• Solid state temperature controls
• Heavy-duty chamber insulation
• Variable speed conveyor drive
• Fiberlon™ conveyor belt
• Adjustable chamber doors
• Forced-air, top-down airflow
• Adjustable radiant heat panel

ADVANTAGES
• Air flow for uniform heat distribution
• Easy heat panel height adjustment
• Quick gate height adjustment for thicker garments
• Energy efficient, low cost operation
• Small footprint; requires little floor space
• Easy to set-up and operate
